Tile shower waterproofing: the layers a Houston shower needs

A tile shower is one of the few things in your home that gets soaked every single day. The tile you see is the easy, pretty part. What keeps water from rotting the framing and growing mold behind the wall is everything you cannot see. Skip those layers and even a gorgeous shower becomes a slow, expensive disaster.

Tile is not waterproof

This surprises people, but grout and most tile are not waterproof. Water passes through them over time. That is why waterproofing lives behind the tile, not in it. If a contractor treats the tile as the water barrier, walk away.

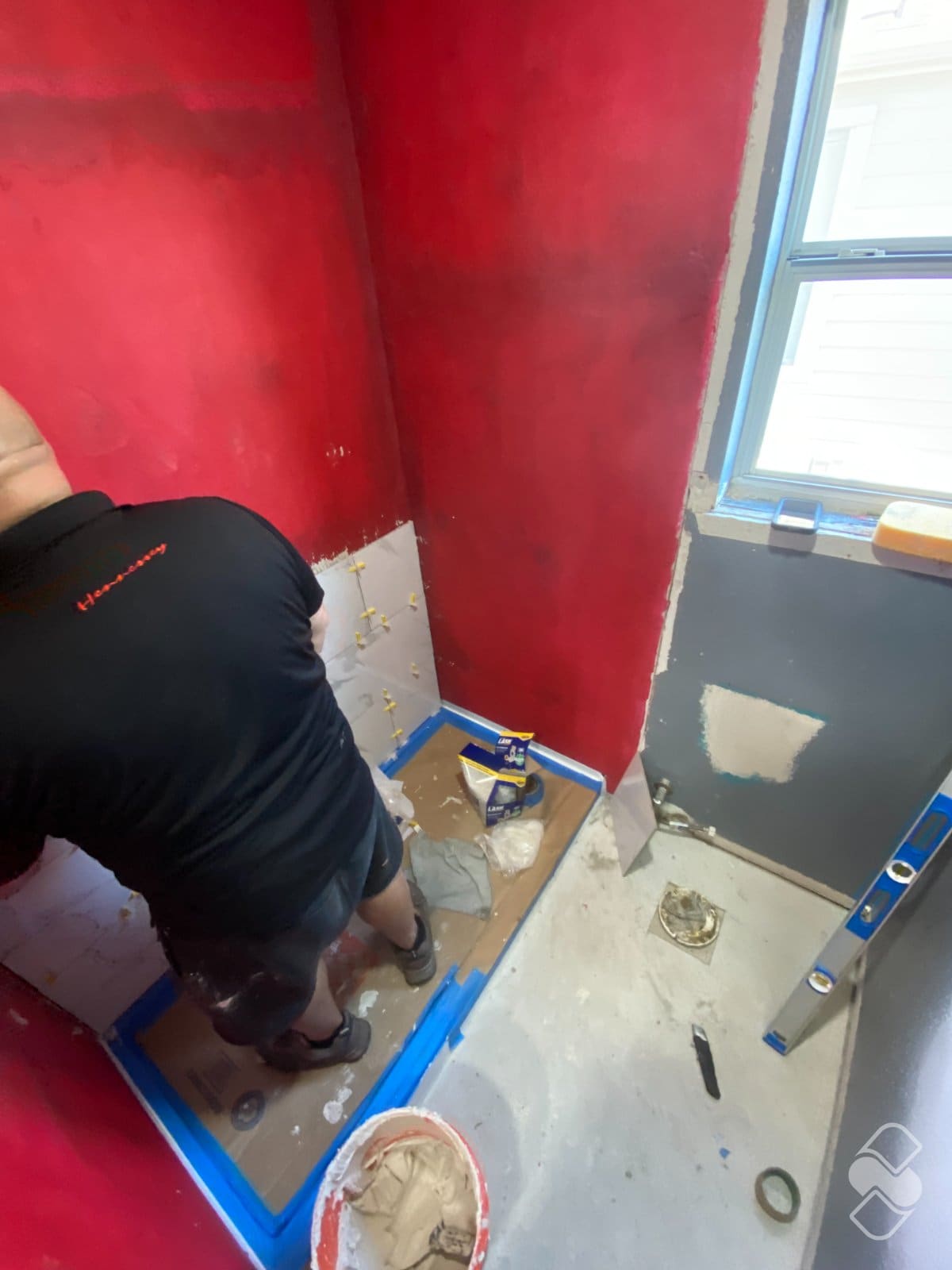

Shower walls coated in red waterproofing membrane while the first rows of white tile are set over the protected pan — The red membrane under the tile is the real water barrier. From Allan’s bath rebuild.

The layers that actually matter

A proper shower pan or sloped base that moves water to the drain instead of letting it pool.
A waterproof membrane on the walls and floor - sheet or liquid-applied - that forms a continuous barrier behind the tile.
Sealed seams, corners, and penetrations where the membrane meets the drain, valve, and niches. Corners are where lazy jobs leak first.
A correctly bonded backer, not moisture-hungry drywall, behind wet walls.

Why it matters even more on the Gulf Coast

Houston humidity means bathrooms dry slowly and moisture lingers. A shower that is not fully sealed does not just risk a leak, it invites mold in a climate that is already working against you. Proper waterproofing plus good ventilation is the difference between a bathroom that stays fresh and one that develops a musty smell you can never quite find.

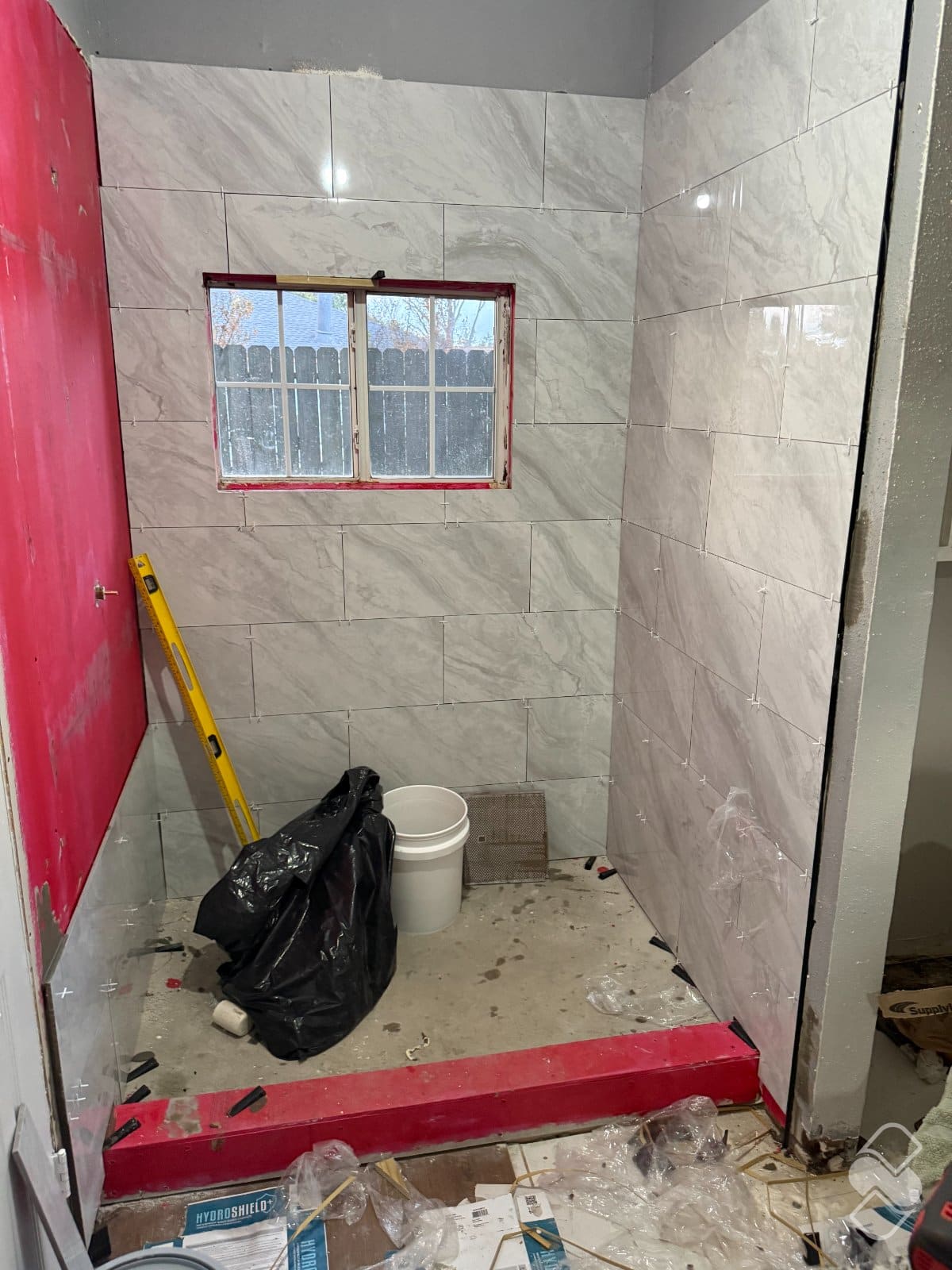

Tile shower rebuild with red waterproofing membrane visible on one wall and on the curb beneath new marble look tile — Membrane behind every wall and over the curb keeps Houston humidity out of the framing. From the Moonflower house.

The tell of a rushed job

Waterproofing takes time and, often, a curing period before tile goes up. A crew that demos and tiles a shower in a couple of days almost certainly skipped a step you will pay for later. We build it in the right order - pan and waterproofing first, then tile - because it only stays beautiful if it stays dry.

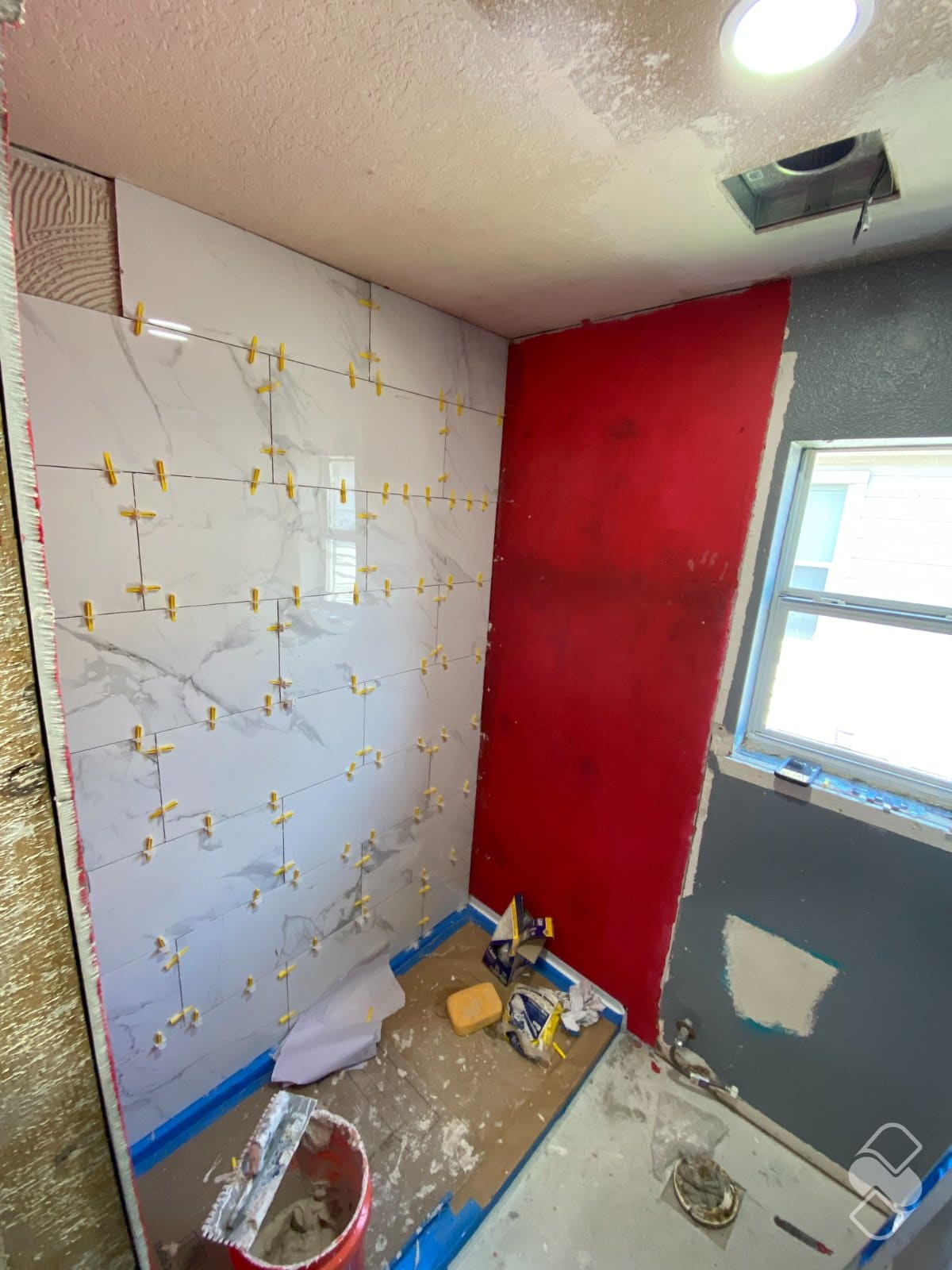

Marble look porcelain tile with spacers being set over a red waterproofed shower wall — Waterproofing cured first, then tile, in that order every time. From Allan’s bath rebuild.

What it looked like on two of our showers

Allan’s hall bath went back to the bare studs. With the floor open we ran new water and drain lines, set backer board, and put full waterproofing on every wall in the wet area and over a sloped pan. The red in the photos above is that membrane, and it cured before the first piece of marble-look porcelain went on. Fifteen days, start to finish, and a shower that will not give Allan a problem down the road.

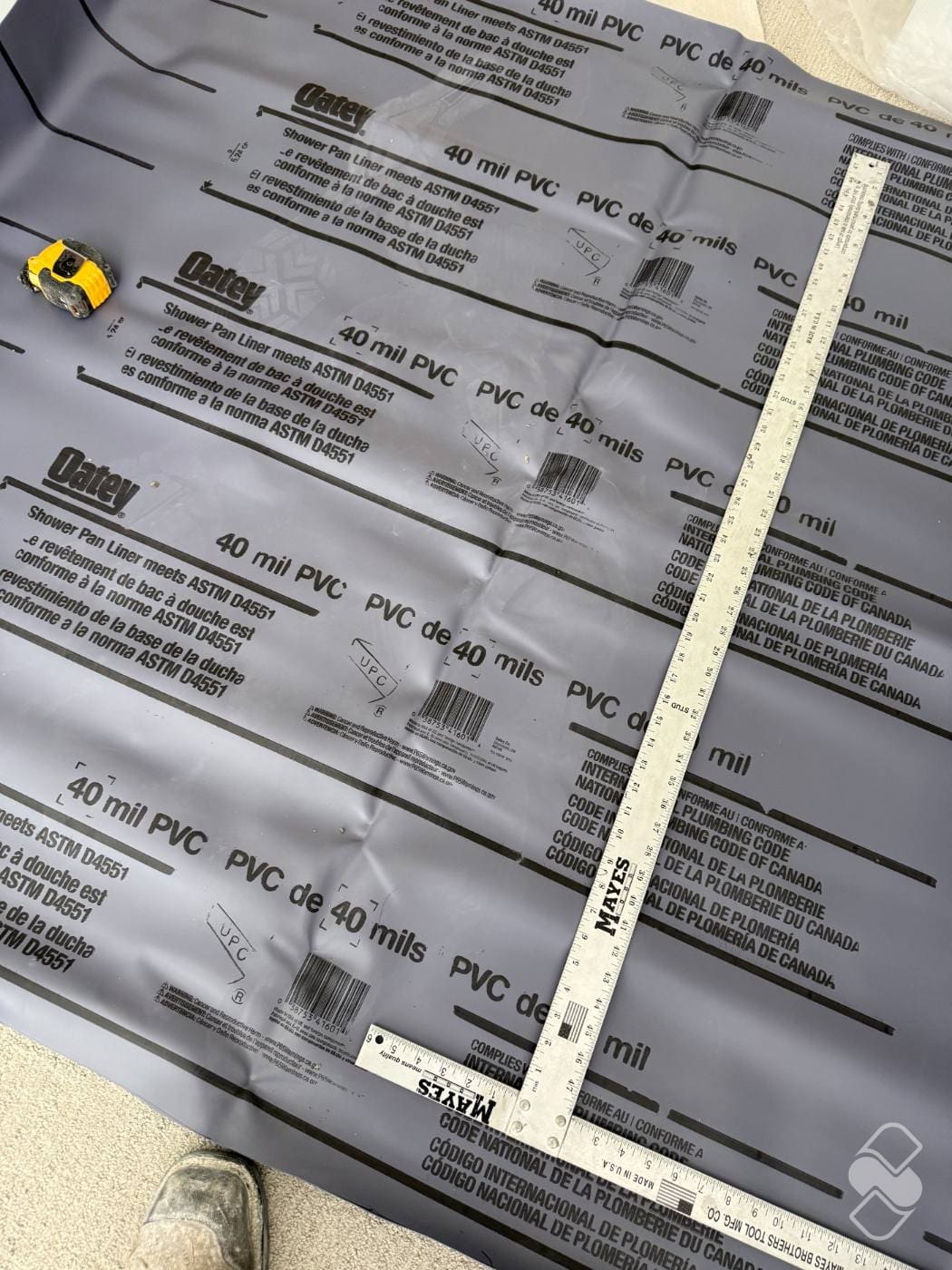

Jake and Megan’s primary bath is the other side of the story. Their old shower had been leaking into the ceiling below for years, and the subfloor under it was rotted out. We cut the floor back to sound framing, replaced it, reset the plumbing, and only then built the shower: a new pan liner sloped to the drain, membrane across the floor and up the walls, and tile last. Every layer under that tile is doing its job.

Waterproofing membrane applied across a shower floor and up the walls before any tile goes on — Membrane across the floor and up the walls before any tile, in Jake and Megan’s primary bath. From the rebuild from the subfloor up.

Planning a bathroom in Katy or anywhere in Greater Houston? This is the part of the job to ask about first. Read how long a bathroom remodel takes to see where the cure days fit, and what bathrooms cost around Houston to see what a proper shower rebuild runs on its own.

You will never see the most important part of your shower. That is exactly why it is where you should never cut corners.

See how we handle bathroom remodeling, from waterproofing to the final walkthrough, or get a free quote for your Katy or Houston-area bathroom.
